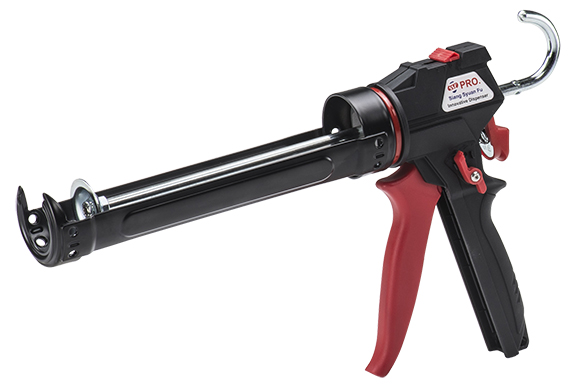

SSF-SRD-R02-1X

Variable thrust ratio (12:1&24:1)/ 310ml cartridge/ 3-stage drip/non-drip system/ detachable cartridge cutter

  • SSF-SRD-R02-1X | 310ML|12:1&24:1
  • SSF-SRD-R02-1X | 310ML|12:1&24:1
  • SSF-SRD-R02-1X | 310ML|12:1&24:1
  • SSF-SRD-R02-1X | 310ML|12:1&24:1
  • SSF-SRD-R02-1X | 310ML|12:1&24:1

SPECIFICATIONS

  • 01Mechanical thrust ratio: 12:1&24:1 / Stroke: 7mm&3.5mm
  • 02Maximum force: 200kgf (2.0kN)
  • 03Cartridge capacity: 310ml (10.5oz)
  • 04Impact-resistant Nylon+Glass fiber handle and trigger
  • 05Twin heat treatment steel push plates
  • 06Steel zinc plated push rod
  • 07Patented 360° rotary type of steel riveted carriage

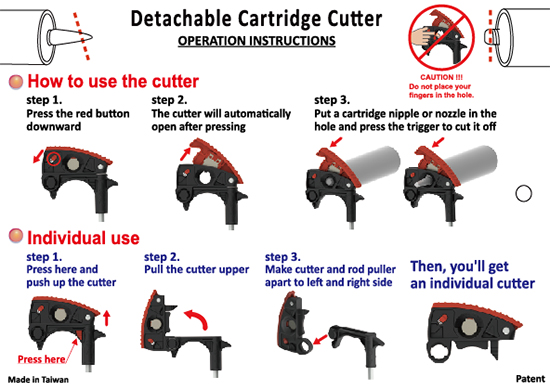

  • 08Patented rod puller with detachable cartridge cutter
  • 091.5mm steel zinc plated push piston
  • 10Built-in cartridge puncture tool
  • 11Patented no trigger gaps design
  • 12Patented quick switch 12:1 to 24:1 thrust ratio system
  • 13Patented quick switch drip/ non-drip system (3-stage)
  • 14Suitable for Low to High viscosity materials

OPTIONAL

  • Patented 2-in-1 convertible rod puller or ladder hook puller
  • LOGO print screen or label
  • Short version - Cartridge capacity: 165ml (6.5oz)
  • Extended version - Cartridge capacity: 400ml (13.5oz)
  • Quart Size version - Cartridge capacity: 856ml (29oz)
  • If you need customize design, please make an enquiry

Inquiry

  • PACKING DETAIL

  • CARTRIDGE SIZE

  • Weight : kgs ( lbs) / 1 pce
  • Carriage Length: 239mm (9.42in)
  • Packing: 1pce/ PE bag, 12pcs/ carton
  • Standard Color: Blue/Red/Black, for other colors, MOQ 3,000pcs mix items is required
  • For other packing: display box, blister card packing, print screen, sticker and customize design and so on, MOQ is required
