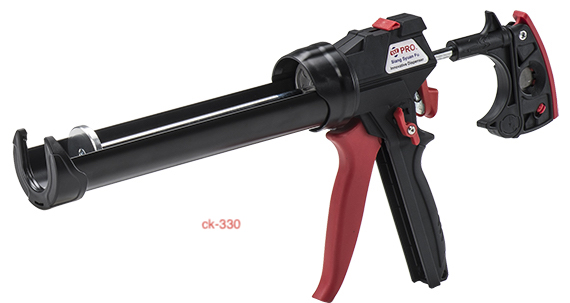

36:1 Powerful caulking gun
With more powerful thrust ratio, 36X series enables to dispense high-viscosity materials such as PU, epoxy...etc. When applying caulk in cold weather, the materials will influenced by the weather and get stiff. The high performance drive of 36:1 thrust ratio reduces user's hand and wrist strength and allows you easily apply high-viscous materials.
High quality aluminum alloy handle & trigger
Key features of it is we use high quality aluminum alloy to make the handle and trigger and treated by liquid coating.
It ensures long durability, better abrasion resistance and corrosion resistance. Also, make it more aesthetic.
Patented no trigger gaps design
It's equipped with a patented no trigger gaps design.
When there is too much free play on the trigger, without adjusting the screw, it will automatically have no free play on the trigger.
Even though it's used for a long term, the trigger has still no free play.
It means when we squeeze the trigger, the sealants will immediately extrude out so as to offer precise dispensing and extends tool life.
Patented rod puller with detachable cartridge cutter
For single component dispenser, users can choose to assemble a handy cartridge cutter on the push rod.
It's convenient to cut the threaded nipples of cartridge and nozzle at a perfect angle.
It can also be detached from the push rod for individual use.
Optional patented protect case design
The protect case that can be chosen. It can cover the handle and prevent dusty in parts.
OEM service
For customization, we also provide other push rod choice and LOGO screen printing to let you design a self-brand tool.
Versatile rod puller choice
- Patented 2-in-1 convertible rod puller
(can be 180° expanding or folded as a J-shaped rod puller)
- Patented rod puller with detachable cartridge cutter
(handy cartridge cutter to cut the threaded nipples of cartridge or nozzle as needed and can be detached from the push rod for individual use)
- J-shaped ladder hook puller
(hang it on the ladder, belt or scaffolding when not in use)
- 7X SERIES|CARTRIDGE |7:1 thrust ratio
- 10X SERIES|CARTRIDGE|10:1 thrust ratio
- 12X SERIES|CARTRIDGE|12:1 thrust ratio
- 18X SERIES|CARTRIDGE |18:1 thrust ratio
- 26X SERIES|CARTRIDGE|26:1 thrust ratio
- 36X SERIES| CARTRIDGE | 36:1 thrust ratio
- 52X SERIES|CARTRIDGE|52:1 thrust ratio
- Aluminum Magic Switch Series | CARTRIDGE | 7:1&14:1
- Magic Switch Series | Cartridge | 9:1 & 18:1
- MAGIC SWITCH SERIES|CARTRIDGE|12:1& 24:1
- UNIQUE RODLESS SERIES|CARTRIDGE | 8:1 thrust ratio
- 29OZ QUART SIZE SERIES|CARTRIDGE|
-
- Cartridge Size/ Ratio:310ml (10.5oz)
- Mechanical Thrust Ratio:36:1
- Maximum Force:500kgf (4.9kN)
-
- Cartridge Size/ Ratio:310-400ml (10.5-13.5oz)
- Mechanical Thrust Ratio:36:1
- Maximum Force:500kgf (4.9kN)
-
- Cartridge Size:310-330ml (10.5-11oz)
- Mechanical Thrust Ratio:36:1
- Maximum Force:500kgf (4.9kN)
-
- Cartridge Size/ Ratio:310-400ml (10.5-13.5oz)
- Mechanical Thrust Ratio:36:1
- Maximum Force:500kgf (4.9kN)
