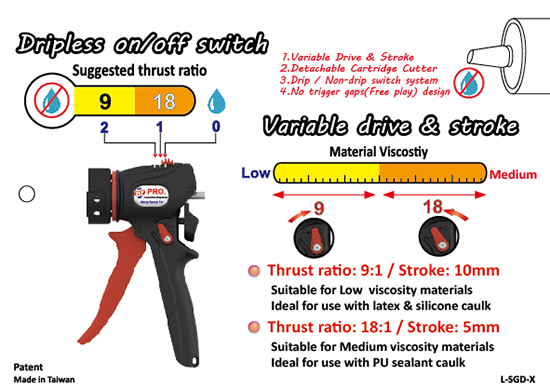

SSF-SGD-AMZX

Variable trust ratio (9:1&18:1) / detachable cartridge cutter/ 400ML/ 3-stage drip/non-drip system

  • SSF-SGD-AMZX | 600ML| 9:1&18:1 thrust ratio
  • SSF-SGD-AMZX | 600ML| 9:1&18:1 thrust ratio
  • SSF-SGD-AMZX | 600ML| 9:1&18:1 thrust ratio
  • SSF-SGD-AMZX | 600ML| 9:1&18:1 thrust ratio
  • SSF-SGD-AMZX | 600ML| 9:1&18:1 thrust ratio
  • SSF-SGD-AMZX | 600ML| 9:1&18:1 thrust ratio
  • SSF-SGD-AMZX | 600ML| 9:1&18:1 thrust ratio

SPECIFICATIONS

  • 01Mechanical thrust ratio: 9:1&18:1 / Stroke: 10mm&5mm
  • 02Maximum force: 180kgf (1.8kN)
  • 03Cartridge capacity: 310-400ml (10.5-13.5oz)
  • 04Sachet capacity: 300-400 (10.1-13.5oz)
  • 05Impact-resistant Nylon+Glass fiber handle and trigger
  • 06Twin heat treatment steel push plates
  • 07Steel zinc plated push rod
  • 08Patented 360° rotary type of Anodized Aluminum barrel
  • 09Lightweight design impact-resistant nylon caps
  • 10Patented rod puller with detachable cartridge cutter
  • 11Patented Quick fit & toolless plunger system
  • 12Patented no trigger gaps design
  • 13Include standard nozzle and large flow nozzle
  • 14Patented quick switch 9:1 to 18:1 thrust ratio system
  • 15Patented quick switch drip/ non-drip system (3-stage)
  • 16Suitable for Low to Medium viscosity materials

OPTIONAL

  • Patented 2-in-1 convertible rod puller, T-shaped rod puller or ladder hook puller
  • LOGO print screen or label
  • PP translucent barrel or  PC transparent barrel
  • If you need customize design, please make an enquiry

Inquiry

  • PACKING DETAIL

  • CARTRIDGE SIZE

  • Weight :  kgs ( lbs) / 1 pce
  • Carriage Length:  270mm (10.64in)
  • Packing: 1pce/ PE bag, 10pcs/ carton
  • Standard Color: Black or Matte silver, for other colors, MOQ 1,000pcs is required
  • For other packing: display box, blister card packing, print screen, sticker and customize design and so on, MOQ is required
