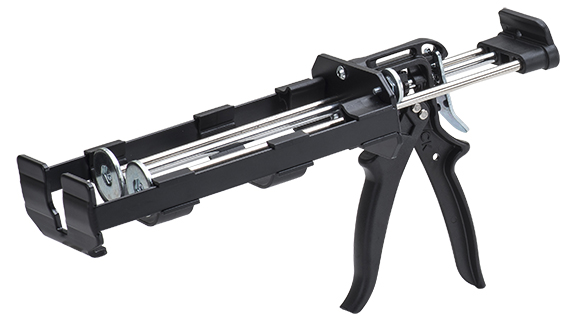

SSF-CK-600K

Powerful thrust ratio(36:1)/ 600ml/ side by side cartridge/ converted to two cartridge ratio (1:1&2:1)

  • SSF-CK-600K | 600ml | 1:1&2:1 side by side cartridge
  • SSF-CK-600K | 600ml | 1:1&2:1 side by side cartridge

SPECIFICATIONS

  • 01Mechanical thrust ratio: 36:1 / Stroke: 3mm
  • 02Maximum force: 500kgf (4.9kN)
  • 03Cartridge capacity: 600-650ml (20.3-22oz) / 450ml (15.3oz)
  • 04Cartridge ratio: 1:1 & 2:1 side by side cartridge
  • 05Aluminum alloy handle and trigger
  • 06Twin heat treatment steel push plates
  • 07Heat treatment chrome plated push rod
  • 08Robust type of steel argon welding carriage
  • 09Lightweight design impact-resistant nylon rod puller
  • 104 mm steel zinc plated push pistons
  • 11Patented protect casing
  • 12Patented no trigger gaps design
  • 13High-performance drive ( Easy on hand)
  • 14Suitable for cold weather and High viscosity materials

OPTIONAL

  • Rubber coating on grip and trigger
  • Without impact-resistant polypropylene casing
  • LOGO print screen or label on the carriage
  • Dome label on the casing
  • 10 mm anodized aluminum push pistons
  • Epoxy coated steel rod puller
  • If you need customize design, please make an enquiry

Inquiry

  • PACKING DETAIL

  • Weight :  kgs ( lbs) / 1 pce
  • Carriage Length: 251mm (9.89in)
  • Packing: 1pce/ PE bag, 10pcs/ carton
  • Standard Color: Blue/Red/Black, for other colors, MOQ 3,000pcs mix items is required
  • For other packing: display box, blister card packing, print screen, sticker and customize design and so on, MOQ is required
