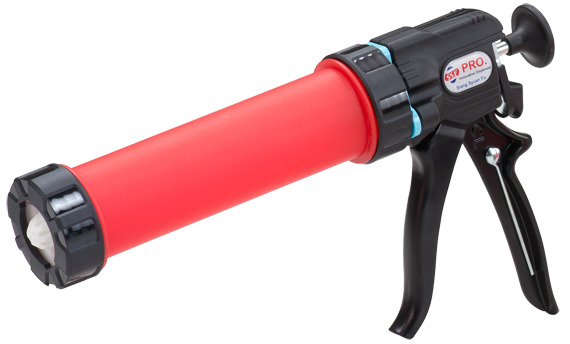

SSF-CG-ASZ

2-in-1/ for sachet pack/ cartridge/ 310ml/ 18:1 thrust ratio

  • 10OZ/300ML 18:1 drive Sausage Gun | 300ml sausage pack and 310ml
  • 10OZ/300ML 18:1 drive Sausage Gun | 300ml sausage pack and 310ml
  • 10OZ/300ML 18:1 drive Sausage Gun | 300ml sausage pack and 310ml
  • 10OZ/300ML 18:1 drive Sausage Gun | 300ml sausage pack and 310ml
  • 10OZ/300ML 18:1 drive Sausage Gun | 300ml sausage pack and 310ml
  • 10OZ/300ML 18:1 drive Sausage Gun | 300ml sausage pack and 310ml
  • 10OZ/300ML 18:1 drive Sausage Gun | 300ml sausage pack and 310ml
  • 10OZ/300ML 18:1 drive Sausage Gun | 300ml sausage pack and 310ml

SPECIFICATIONS

  • 01Mechanical thrust ratio: 18:1 / Stroke: 5.5mm
  • 02Maximum force: 350kgf (3.4kN)
  • 03Cartridge capacity: 310ml (10.5oz)
  • 04Sachet capacity: 300ml (10.1oz)
  • 05Aluminum alloy handle / Steel trigger
  • 06Twin heat treatment steel push plates
  • 07Steel zinc plated push rod
  • 08Patented 360° rotary type of Anodized Aluminum barrel
  • 09Lightweight design impact-resistant nylon caps
  • 10Impact-resistant nylon rod puller
  • 11Patented Quick fit & toolless plunger system
  • 12Built-in cartridge puncture tool
  • 13Patented no trigger gaps design
  • 14Include standard nozzle and large flow nozzle
  • 15Suitable for Medium and high viscosity materials

OPTIONAL

  • Dripless design
  • Rubber coating on grip and trigger
  • Patented impact-resistant polypropylene casing
  • Patented 2-in-1 convertible rod puller or ladder hook puller
  • LOGO print screen or label
  • PP translucent barrel or PC transparent barrel
  • If you need customize design, please make an enquiry

Inquiry

  • PACKING DETAIL

  • CARTRIDGE SIZE

  • Weight : 0.85kgs (1.88 lbs) / 1 pce
  • Carriage Length: 233mm (9.18in)
  • Packing: 1pce/ PE bag, 10pcs/ carton
  • Standard Color: Black or Matte silver, for other colors, MOQ 1,000pcs is required
  • For other packing: display box, blister card packing, print screen, sticker and customize design and so on, MOQ is required
