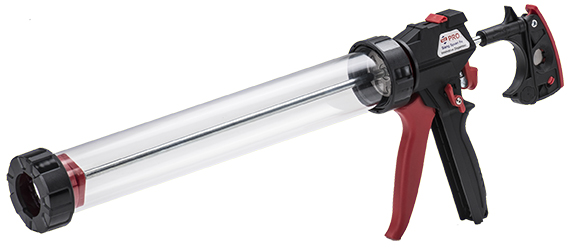

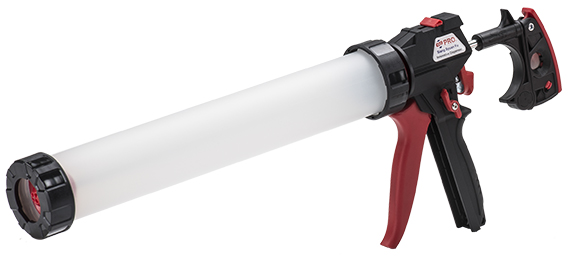

Magic Switch Series Bulk Guns

Magic Switch series features variable thrust ratio switch for every situation. Utilizing our magic switch system from 12:1 to 24:1 can apply low to high viscosity materials. Like bike gearing system, you have to switch gearing to meet different kinds of situation. For instance, when you are applying thicker materials (ride uphill), you will switch to high thrust ratio (lower gearing) for conserving your energy and accelerating the power of moving forward. In contrast, when you are applying lower viscosity materials (riding flat surface/ downhill), you will switch to lower thrust ratio (higher gearing) for stably moving forward without over-revying. Under different circumstance, the solution will be totally different. That’s why we need a variable thrust ratio systems equipped on one caulk gun. To make it multi-functional, we design a patented quick fit system on it. It can accommodate 600ml bulk-loaded caulking materials, 300-400-600ml sausage pack and 310-400ml cartridge. Unique 3-in-1 plunger is kit for our patented quick fit system. A rubber ring installed on 3-in-1 plunger can prevent materials from back flowing. It can be also compatible with sausage pack. Pressing catch plate can instantly release pressure to stop materials flowing when you temporarily stop your caulk work.

3-stage drip/non-drip system

To make it versatile, we design a 3-stage drip/non-drip system on it. There are one drip function and two-stage dripless functions for easy-manageable to caulk without the mess.

How to use 3-stage drip/non-drip system?

Switch to 0, it will keep materials dripping.

Switch to 1, when using 24:1 thrust ratio, we can prevent materials from dripping.

Switch to 2, when using 12:1 thrust ratio, we can stop materials from dripping.

Other options

There are four rod puller to let you choose from.

Impact-resistant nylon rod puller (T-shaped) : basic type, easily pull the rod

Ladder hook rod puller (J-shaped): hanging on the ladder or scaffolding when not in use

2-in-1 convertible rod puller (batman-shaped): ergonomic design, can be folded as a J-shaped rod puller

Patented rod puller with detachable cartridge cutter: convenient to cut the threaded nipples of cartridge and nozzle without other tools, it can also be detached from the push rod and use it individually

Three types of barrels

Anodized aluminum barrel, PC transparent barrel and PP translucent barrel can be chosen.

For more OEM services, please make an inquiry to us.

Other useful accessories

Each sausage gun and bulk gun is supplied with a standard nozzle and a large flow nozzle. It’s single usage accessory. If you need more nozzles, you could pick and buy them. Are you looking for a safer utility knife for cutting the threaded nipples and nozzles? SSF cartridge cutter comes in handy. It features a safety switch for not easily hurting you. How does it work? Only put nozzles in the middle of cutter and press it, you could cut a perfect angle for your nozzles. It’s definitely an ergonomic cutter saving your time and effort.
